uxcell Push Button Switch Box Momentary NO NC Red Green Switches and Latching 2 Positions Rotary Switches
Red Green Button: Momentary; Rotary Switch: Self-Locking; Contact Type: NO NC; Ith: 10A; Ui: 415V
Hole Distance(center to center): 115 x 54mm/ 4.53″ x 2.13″ (L*W); Total Size (Approx.): 150 x 71 x 88mm / 5.91 x 2.8 x 3.46″ (L*W*T)
Comes with quick connect terminals to allow for fast connections.
$19.39
Description:

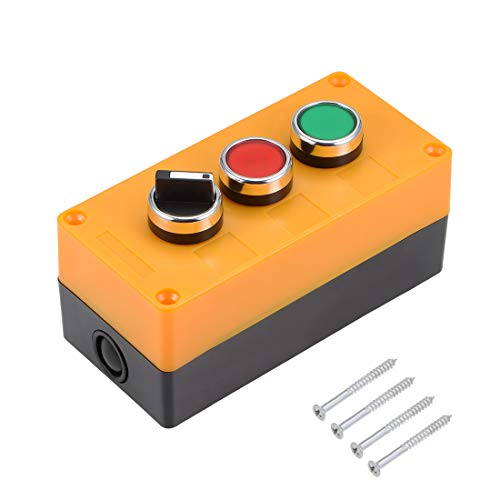

The push button switch station consists of three switches, one is a momentary red push button switch, one is a momentary green switch and a 2-postion rotary switch.
Can be widely used to control the electromagnetic, contactor, relay and other automatic control electric circuits.

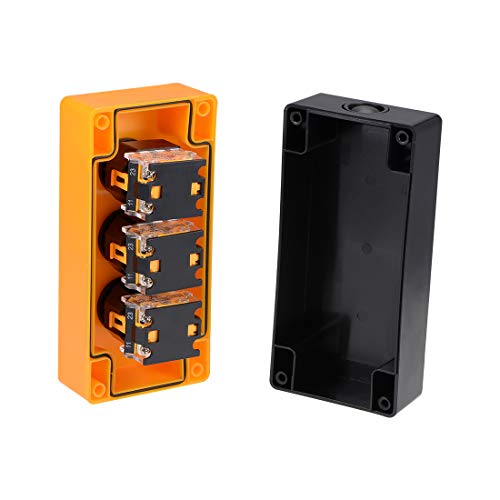

Comes with quick connect terminals to allow for fast connections.
Specification:
Material: PC
Action Type:
Red Green Button: Momentary
Rotary Switch: Self-Locking
Contact Type: NO NC
Button Color: Red, Green, Black
Ith: 10A; Ui: 415V
Screw Hole Dia: 4mm / 0.16″
Button Hole Size: 22mm/ 0.86″
Outlet Hole Diameter: 20mm/ 0.79″
Hole Distance(center to center): 115 x 54mm/ 4.53″ x 2.13″ (L*W)

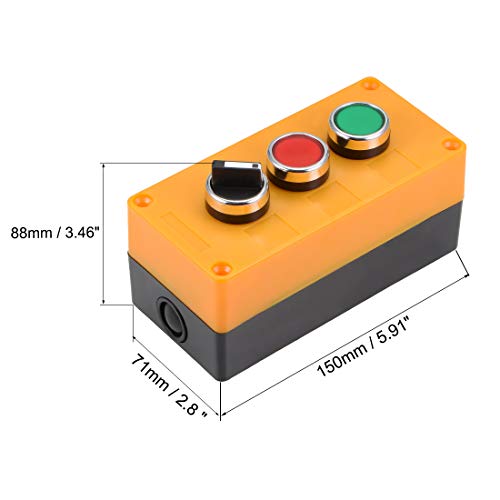

Total Size (Approx.): 150 x 71 x 88mm / 5.91 x 2.8 x 3.46″ (L*W*T)
Package Content:
1 x Push Button Switch Station
Red Green Button: Momentary; Rotary Switch: Self-Locking; Contact Type: NO NC; Ith: 10A; Ui: 415V
Hole Distance(center to center): 115 x 54mm/ 4.53″ x 2.13″ (L*W); Total Size (Approx.): 150 x 71 x 88mm / 5.91 x 2.8 x 3.46″ (L*W*T)
Comes with quick connect terminals to allow for fast connections.
The push button switch station consists of three switches, one is a momentary red push button switch, one is a momentary green switch and a 2-postion rotary switch.
Can be widely used to control electromagnetic, relay, and other automatic control electric circuits.
