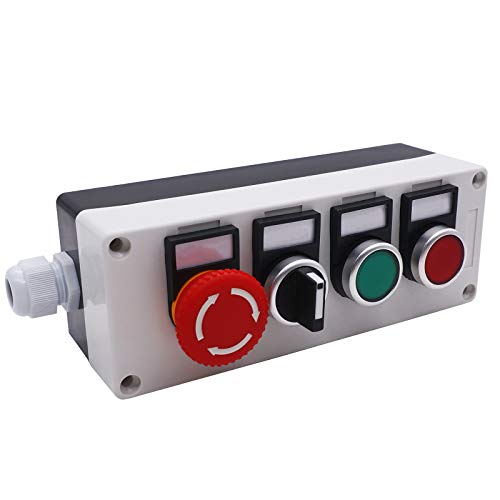

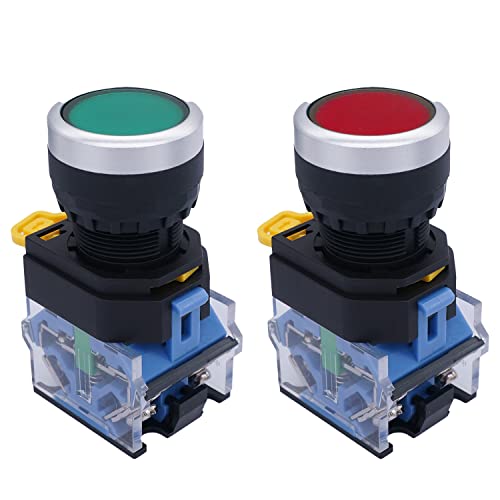

TWTADE/Red Green Momentary Switch, Red Mushroom Emergency Stop Latching Push Button Switch,3 Positions 2NO Latching Select Selector Switch Station Box hz-11ZS-20X-GR

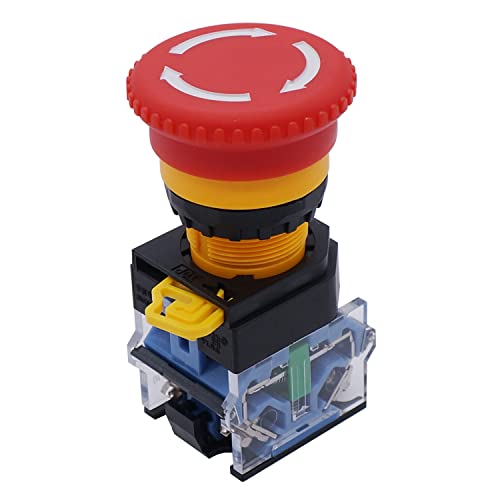

Product Name: Emergency Stop Push Button Switch; Type: Self Locking Rotary
Ith: 10A; Ui : 440V; Voltage category: AC 125V, 5A; AC 300V, 3A; Contact type: 1No 1NC; Screw terminal quantity: 4
Special Note: This button switch does not have a light up function; Model: LA38-11; Action type : Momentary; Ith : 10A; Ui: 440V; Screw terminal quantity: 4
$26.98
Product Name: Emergency Stop Push Button Switch; Type: Self Locking Rotary
Ith: 10A; Ui : 440V; Voltage category: AC 125V, 5A; AC 300V, 3A; Contact type: 1No 1NC; Screw terminal quantity: 4
Special Note: This button switch does not have a light up function; Model: LA38-11; Action type : Momentary; Ith : 10A; Ui: 440V; Screw terminal quantity: 4
Selector Switch: Contact type: 2 NO; Action type: latching; Positions: 3 positions; Ui: 440V Its: 10A; Terminal quantity: 4

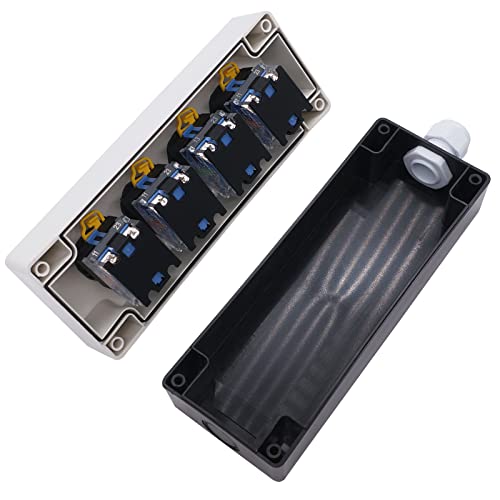

Overall Size(not include the button) : 19.4 x 7 x 6.4cm/ 7.6″ x 2.7″ x 2.5″ (L*W*H);Button Diameter(Approx.) : Red Mushroom: 4cm/ 1.5″; Red, Green: 2.9cm/1.14″ ;Weight: 400g; Package content : 1 x Switch Box Station
